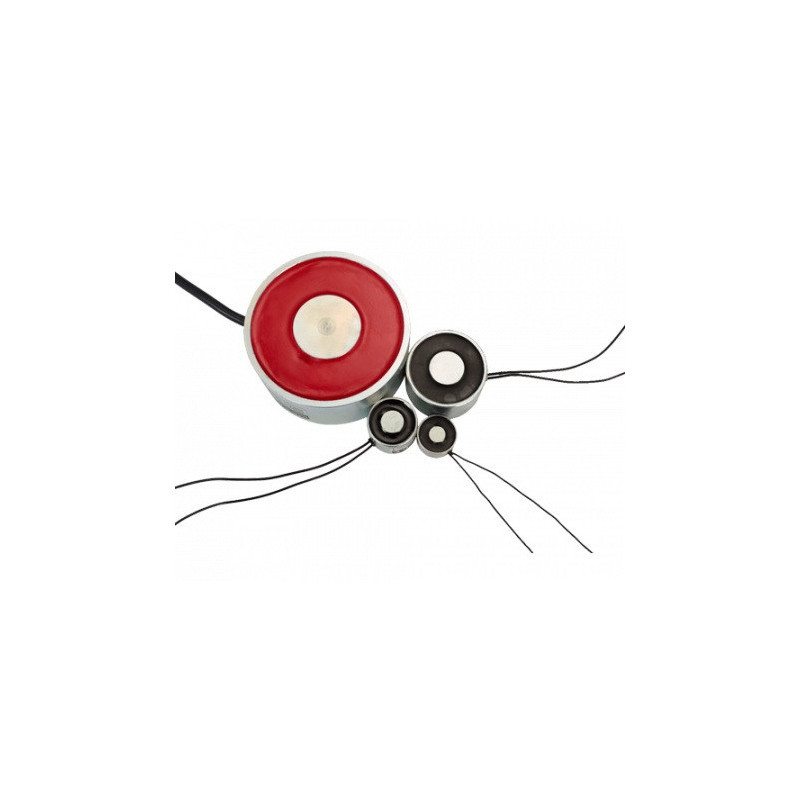

IMAVP-150/ND
Reference: ELEE01108
Features:
Degree of protection IP65
Thermal Class B (130)
Rated voltage 24VDC
Normalised Duty cycle: see table
For other voltages, ED or sizes, please consult us.
.svg)
.svg)
/IMAVP%20con%20conector.jpg)
|

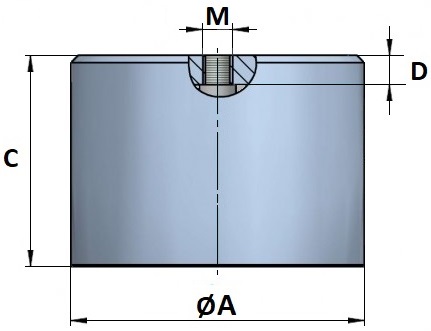

Code |
ØA (-0.3) (mm) |
M |
C (±0.1) (mm) |
D (mm) |
Weight (kg) |
| IMAVP-150/ND | 150 | M-16 | 65 | 15 | 7.10 |
|
Code |
P (W) |
ED (%) |
E (mm) |
Air gap (mm) δL |
||||
| 0 | 0.2 | 0.5 | ||||||
| IMAVP150/ND | 77 | 40 | ||||||
| Magnetic forces Fm (N) | ||||||||
| 1 | 78 | 46 | 32 | |||||
| 3 | 615 | 475 | 401 | |||||
| 10 | 2205 | 1490 | 1100 | |||||
ELEE01108
Las referencias específicas
- EAN13
- 8435533614264
Features:
Degree of protection IP65
Thermal Class B (130)
Rated voltage 24VDC
Normalised Duty cycle: see table
For other voltages, ED or sizes, please consult us.
