  • Rectangular electromagnets IMAREC 400/35

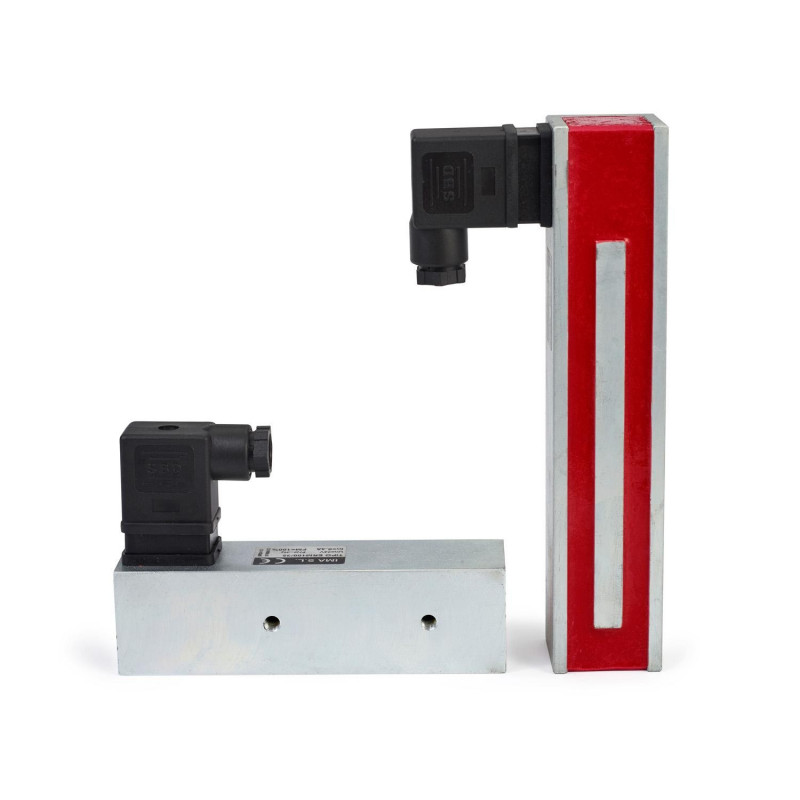

IMAREC-400/35 side connector

Reference: ELEE00333

IMAREC 400/35

Features:

Degree of protection: IP65
Insulation class: B (130)
Rated voltage: 24V DC
Duty cycle factor up: ED 100%
Other voltages, ED and sizes: Consult





Standard measurements:

Code

A (mm)

B (mm)

C (mm)

D (mm)

E (mm)

F (mm)

H

N.º Holes

Weight (kg)

Press-tow
IMAREC 400/35 425 35±0.3 34±0.1 25 50 12 M6 8 2.8 PG-9

Code

P a 20ºC (W)

e (mm)

Air gap (mm) δL

 Magnetic holding
    Forces Fm (N)
0 0.1 0.2 0.5 1
IMAREC 400/35 30 1 172 131 91 60 35
3 2100 1460 537 210 45
6 3060 1722 962 263 60
10 3810 2371 1297 304 93
ELEE00333

Ficha de datos

Market factor
ED 100 %

Las referencias específicas

EAN13
8435533614301
