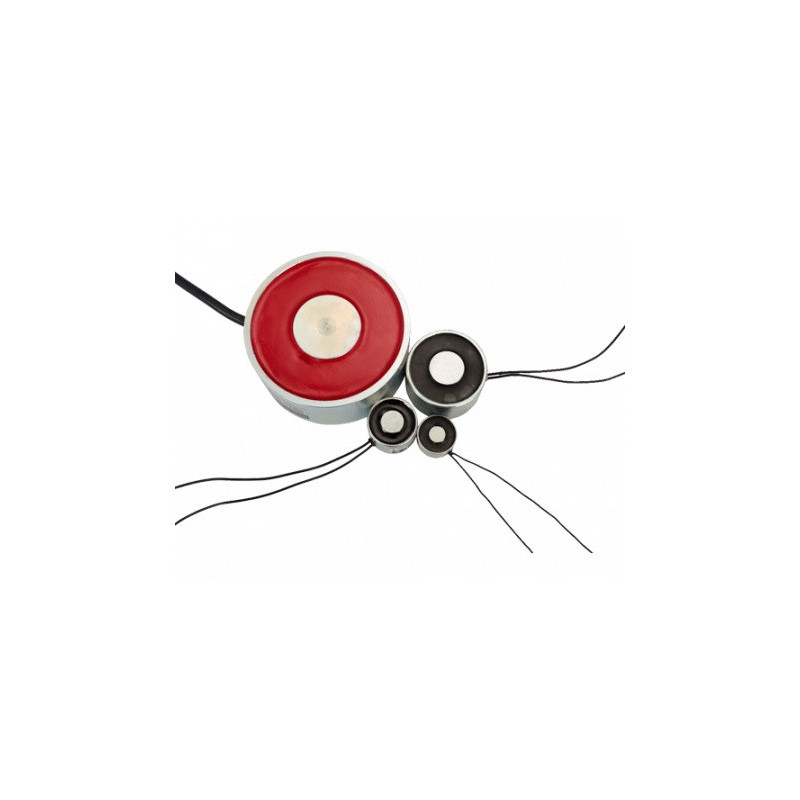

IMAVP65 ( With Connector )
Reference: ELEE01045
DC electro – Neodymium Quality IMAVP65/ND
Features:
Degree of protection IP65
Thermal Class B (130)
Rated voltage 24VDC
Normalised Duty cycle: see table
For other voltages, ED or sizes, please consult us.
.svg)
.svg)
/IMAVP%20con%20conector.jpg)
|
Code |
ØA (-0.3) (mm) |
M |
C (±0.1) (mm) |
D (mm) |
E (mm) |
Weight (kg) |
| IMAVP-65/ND | 65 | M-8 | 45.5 | 8 | 67 | 0.74 |
|
Code |
P (W) |
ED (%) |
E (mm) |
Air gap (mm) δL |
||||
| 0 | 0.2 | 0.5 | ||||||
| IMAVP-65/ND | 80 | 15 | ||||||
| Magnetic forces Fm (N) | ||||||||
| 1 | 70 | 50 | 40 | |||||
| 3 | 374 | 340 | 260 | |||||
| 10 | 1220 | 755 | 400 | |||||
Important: the clamp screw must not exceed the dimension D.
* On request, can be manufactured with internal protection to prevent overheating in the coil due to non-compliance with operating times determined by the driving factors, this overheating can demagnetize the internal magnets or destroy the coil altering the correct operation of the electromagnet.
ELEE01045
Ficha de datos
- Market factor
- ED 15 %
- Weight
- 0.74 Kg
Las referencias específicas
- EAN13
- 8435533614462
