IMAVEM-100
Reference: ELEE00020
Circular pick-up electromagnets IMAVEM-100
Features:
Degree of protection IP65
Thermal Class B (130)
Rated voltage 24V DC
Normalised Duty cycle: ED 100%.
For other voltages, ED or sizes, please consult us.
Supply possibilities on request:
With connection cables. (Standard model)
With connector, from the IMAVEM-50 model upwards. (Optional) – The connector has 4 options for positioning (4 × 90º) and is not suitable for alternating current (AC) voltage.
.svg)
.svg)
Para 1 uds. el precio es
€130.68
Tax included
|
Code |
Electromagnet Weight (Kg) |

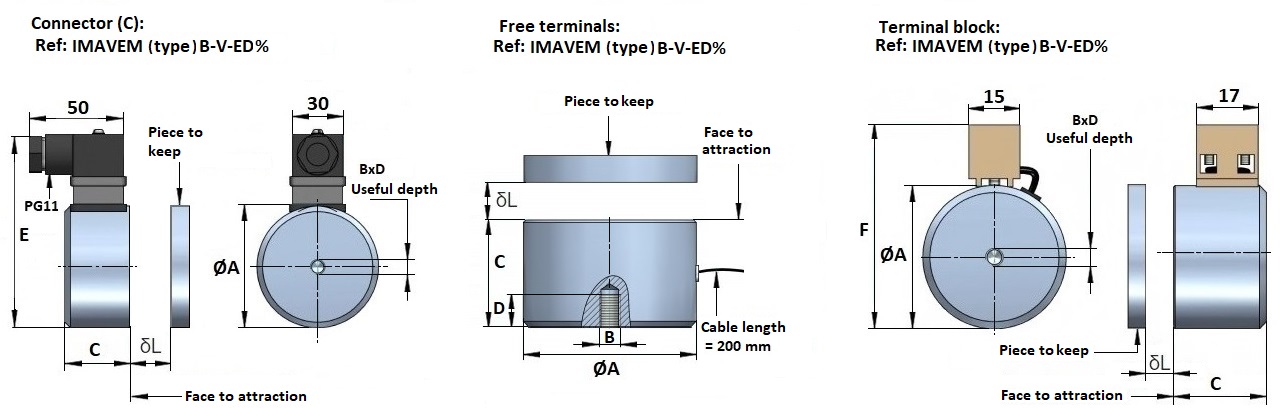

ØA (-0.3) (mm) |
B |
C (±0.1) (mm) |
D (mm) |
E (mm) |
F (mm) |
| IMAVEM-100 | 2.000 | 100 | M-10 | 43 | 15 | 147 | 115 |
|
Code |
P a 20°C (W) |
E (mm) |
Air gap (mm) δL |
||||
| 0 | 0.1 | 0.2 | 0.5 | 1 | |||
| IMAVEM-100 | 20 | ||||||
| Magnetic forces Fm (N) | |||||||
| 1 | 70 | 50 | 40 | 35 | 25 | ||
| 3 | 530 | 440 | 426 | 335 | 225 | ||
| 6 | 1400 | 1200 | 1050 | 730 | 310 | ||
| 10 | 2600 | 2200 | 1700 | 880 | 330 | ||
Important: the clamp screw must not exceed the dimension D.
* On request, can be manufactured to any size, voltage, duty cycle, etc.
ELEE00020
Ficha de datos
- Market factor
- ED 100 %
- Weight
- 2.100 Kg
Las referencias específicas
- EAN13
- 8435533614219
Circular pick-up electromagnets IMAVEM-100
Features:
Degree of protection IP65
Thermal Class B (130)
Rated voltage 24V DC
Normalised Duty cycle: ED 100%.
For other voltages, ED or sizes, please consult us.
Supply possibilities on request:
With connection cables. (Standard model)
With connector, from the IMAVEM-50 model upwards. (Optional) – The connector has 4 options for positioning (4 × 90º) and is not suitable for alternating current (AC) voltage.
